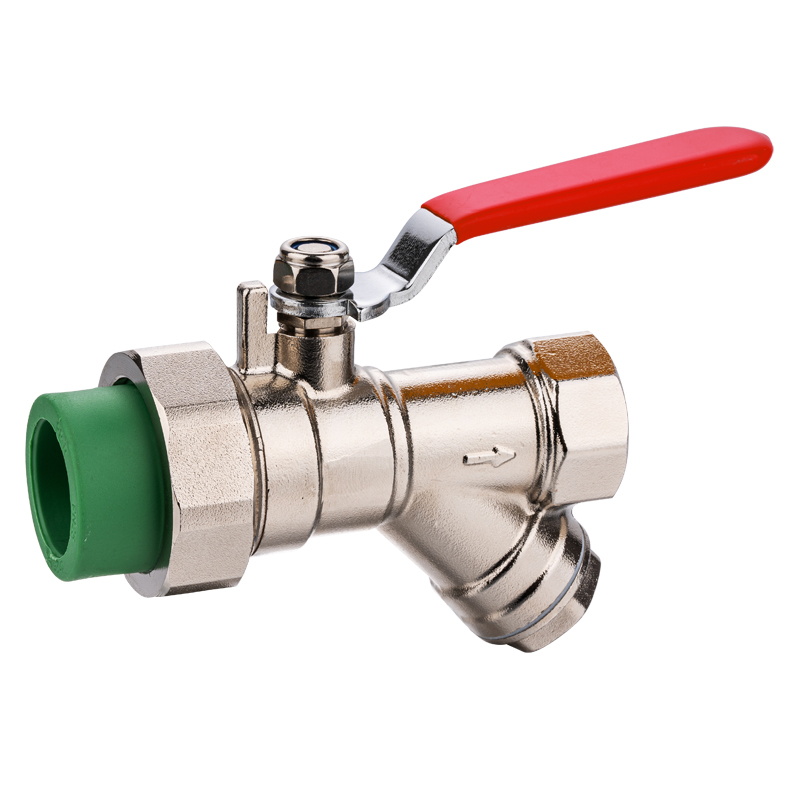

| Model | Size | Port |
| Y-GPPR25 | 3/4" | 0.551" |
| Y-GPPR32 | 1" | 0.748" |

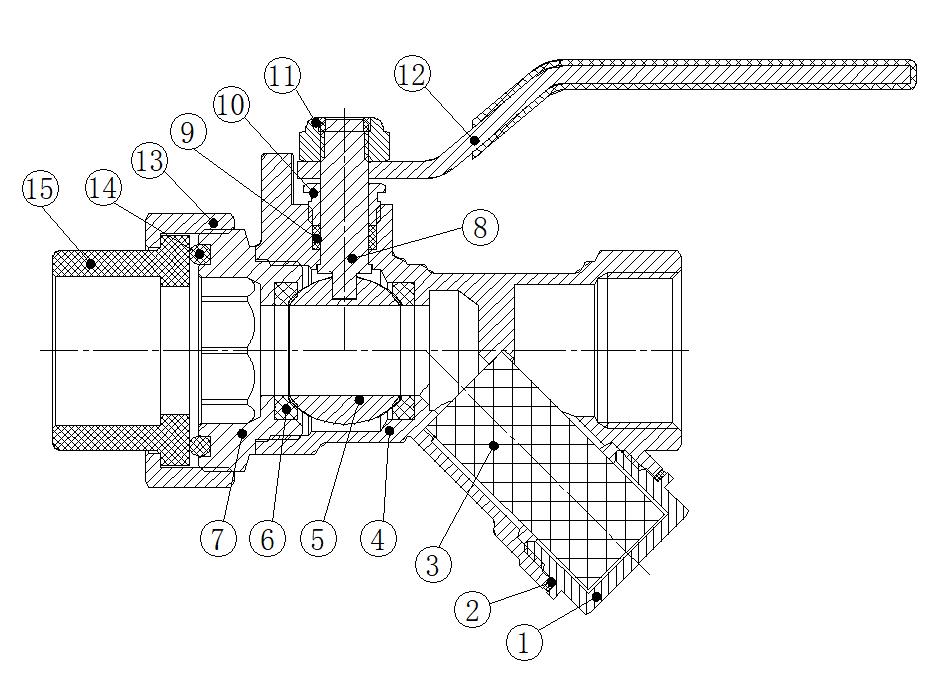

Material List
| NO. | Name | Material | QTY |
| 1 | Plug Cap | Brass | 1 |
| 2 | Gasket | PTFE | 1 |
| 3 | Filters | Stainless Steel | 1 |
| 4 | Body | Brass | 1 |
| 5 | Ball | Stainless Steel/Brass | 1 |
| 6 | Seat | PTFE | 2 |
| 7 | Cap | Brass | 1 |
| 8 | Stem | Brass | 1 |
| 9 | Packing | PTFE | 1 |
| 10 | Stem | Brass | 1 |
| 11 | Handle Nut | Plated Steel | 1 |
| 12 | Handle | Plated Steel | 1 |
| 13 | Union Cap | Brass | 1 |
| 14 | O-ring | EPDM | 1 |
| 15 | PPR Union | PPR | 1 |
| Model | Size | Port |
| Y-GPPR25 | 3/4" | 0.551" |
| Y-GPPR32 | 1" | 0.748" |
Material List
| NO. | Name | Material | QTY |
| 1 | Plug Cap | Brass | 1 |
| 2 | Gasket | PTFE | 1 |
| 3 | Filters | Stainless Steel | 1 |
| 4 | Body | Brass | 1 |
| 5 | Ball | Stainless Steel/Brass | 1 |
| 6 | Seat | PTFE | 2 |
| 7 | Cap | Brass | 1 |
| 8 | Stem | Brass | 1 |
| 9 | Packing | PTFE | 1 |
| 10 | Stem | Brass | 1 |
| 11 | Handle Nut | Plated Steel | 1 |
| 12 | Handle | Plated Steel | 1 |
| 13 | Union Cap | Brass | 1 |
| 14 | O-ring | EPDM | 1 |
| 15 | PPR Union | PPR | 1 |
