| Model | Size | Port |
| LGM-YPPR25 | 25*1" | 0.787" |
| LGM-YPPR32 | 32*1" | 0.787" |
| LGM-YPPR40 | 40*1-1/4" | 1.260" |

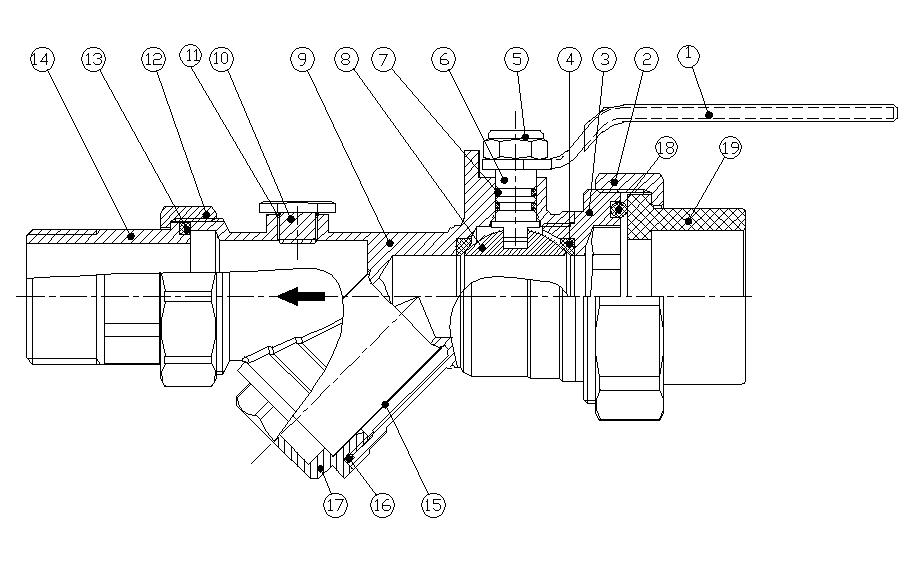

Material List
| NO. | Name | Material | QTY |
| 1 | Handle | Plated Steel | 1 |
| 2 | Cap Nut | Brass | 1 |
| 3 | Cap | Brass | 1 |
| 4 | Seat | PTFE | 2 |
| 5 | Handle Nut | Plated Steel | 1 |
| 6 | Stem | Brass | 1 |
| 7 | O-ring | NBR | 2 |
| 8 | Ball | Stainless Steel/Brass | 1 |
| 9 | Body | Brass | 1 |
| 10 | Nut | Brass | 1 |
| 11 | O-ring | NBR | 1 |
| 12 | Union Nut | Brass | 1 |
| 13 | Gasket | EPDM | 1 |
| 14 | Union Cap | Brass | 1 |
| 15 | Filters | Stainless Steel | 1 |
| 16 | Gasket | EPDM | 1 |
| 17 | Plug Cap | Brass | 1 |
| 18 | O-ring | EPDM | 1 |
| 19 | PPR Union | PPR | 1 |
| Model | Size | Port |
| LGM-YPPR25 | 25*1" | 0.787" |
| LGM-YPPR32 | 32*1" | 0.787" |
| LGM-YPPR40 | 40*1-1/4" | 1.260" |
Material List
| NO. | Name | Material | QTY |
| 1 | Handle | Plated Steel | 1 |
| 2 | Cap Nut | Brass | 1 |
| 3 | Cap | Brass | 1 |
| 4 | Seat | PTFE | 2 |
| 5 | Handle Nut | Plated Steel | 1 |
| 6 | Stem | Brass | 1 |
| 7 | O-ring | NBR | 2 |
| 8 | Ball | Stainless Steel/Brass | 1 |
| 9 | Body | Brass | 1 |
| 10 | Nut | Brass | 1 |
| 11 | O-ring | NBR | 1 |
| 12 | Union Nut | Brass | 1 |
| 13 | Gasket | EPDM | 1 |
| 14 | Union Cap | Brass | 1 |
| 15 | Filters | Stainless Steel | 1 |
| 16 | Gasket | EPDM | 1 |
| 17 | Plug Cap | Brass | 1 |
| 18 | O-ring | EPDM | 1 |
| 19 | PPR Union | PPR | 1 |
