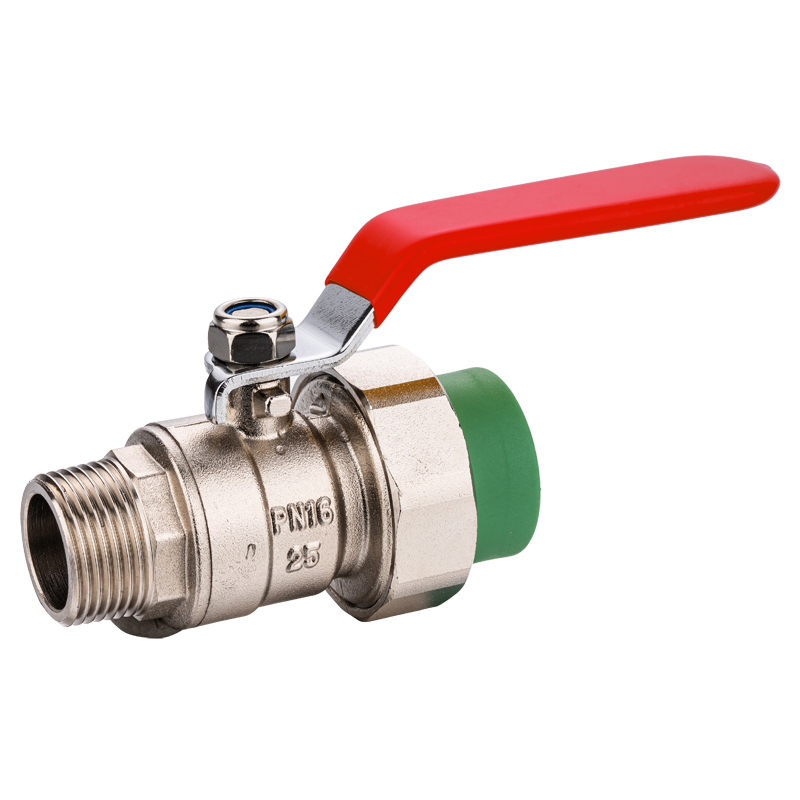

| Model | Size | Port |
| PPR-GM20 | 1/2" | 0.512" |
| PPR-GM25 | 3/4" | 0.689" |
| PPR-GM32 | 1" | 0.906" |

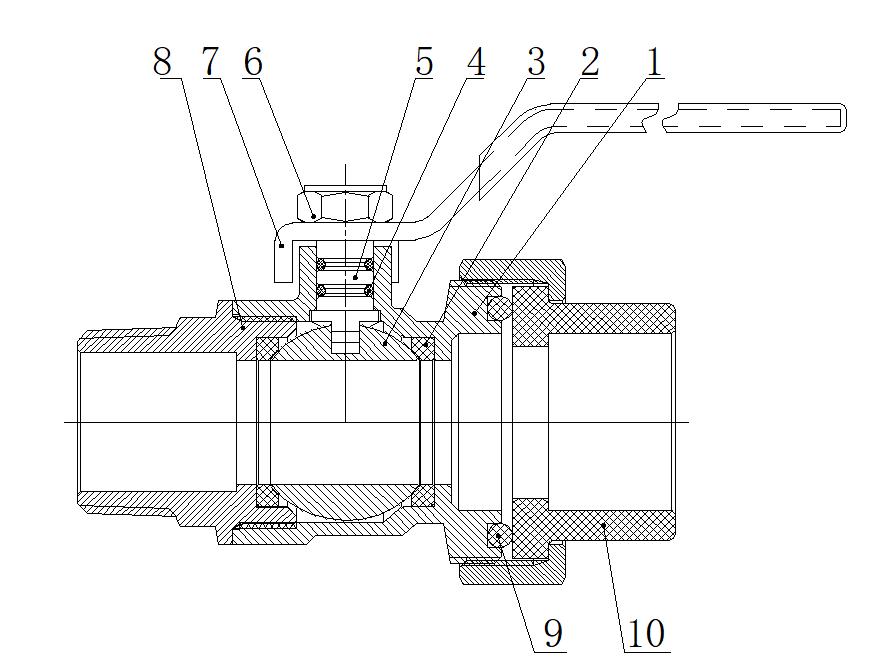

Material List
| NO. | Name | Material | QTY |
| 1 | Body | Brass | 1 |
| 2 | Seat | PTFE | 2 |
| 3 | Ball | Stainless Steel/Brass | 1 |
| 4 | O-ring | NBR | 2 |
| 5 | Stem | Brass | 1 |
| 6 | Handle Nut | Plated Steel | 1 |
| 7 | Handle | Plated Steel | 1 |
| 8 | Cap | Brass | 1 |
| 9 | O-ring | EPDM | 1 |
| 10 | PPR Union | PPR | 1 |
| Model | Size | Port |
| PPR-GM20 | 1/2" | 0.512" |
| PPR-GM25 | 3/4" | 0.689" |
| PPR-GM32 | 1" | 0.906" |
Material List
| NO. | Name | Material | QTY |
| 1 | Body | Brass | 1 |
| 2 | Seat | PTFE | 2 |
| 3 | Ball | Stainless Steel/Brass | 1 |
| 4 | O-ring | NBR | 2 |
| 5 | Stem | Brass | 1 |
| 6 | Handle Nut | Plated Steel | 1 |
| 7 | Handle | Plated Steel | 1 |
| 8 | Cap | Brass | 1 |
| 9 | O-ring | EPDM | 1 |
| 10 | PPR Union | PPR | 1 |
