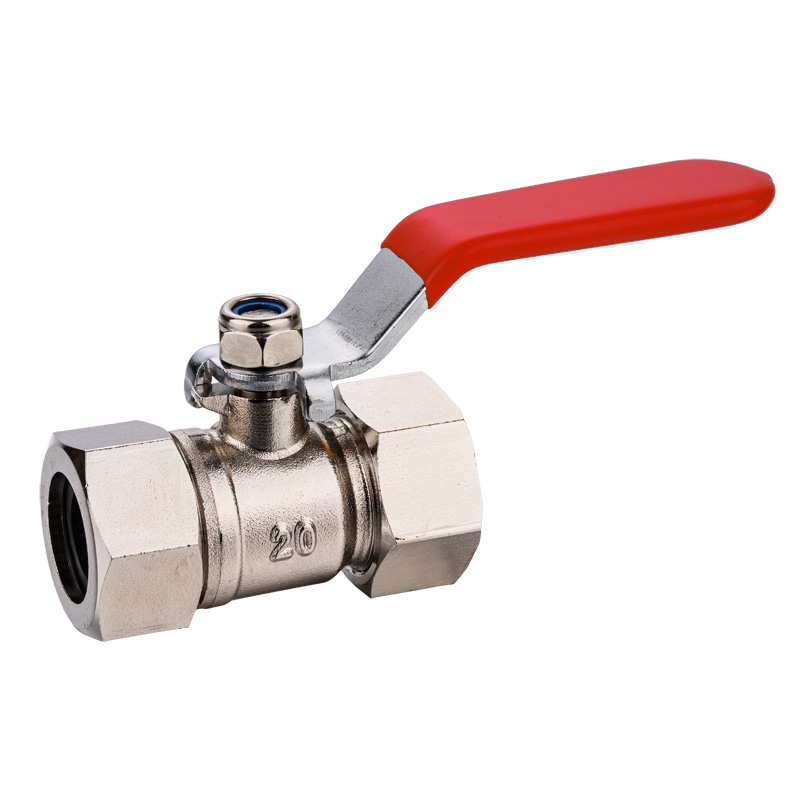

Q- SERIES


Specification
  • Forged Brass Body
  • Blow Out Proof Stem Design
  • Double O-RING
  • Handle With Vinyl Grip
  • Thread: ISO228

Performance Rating
  • Max working pressure 1.6MPa
  • Temperature Range: 0℃ to 120℃

Availability:
Inquire

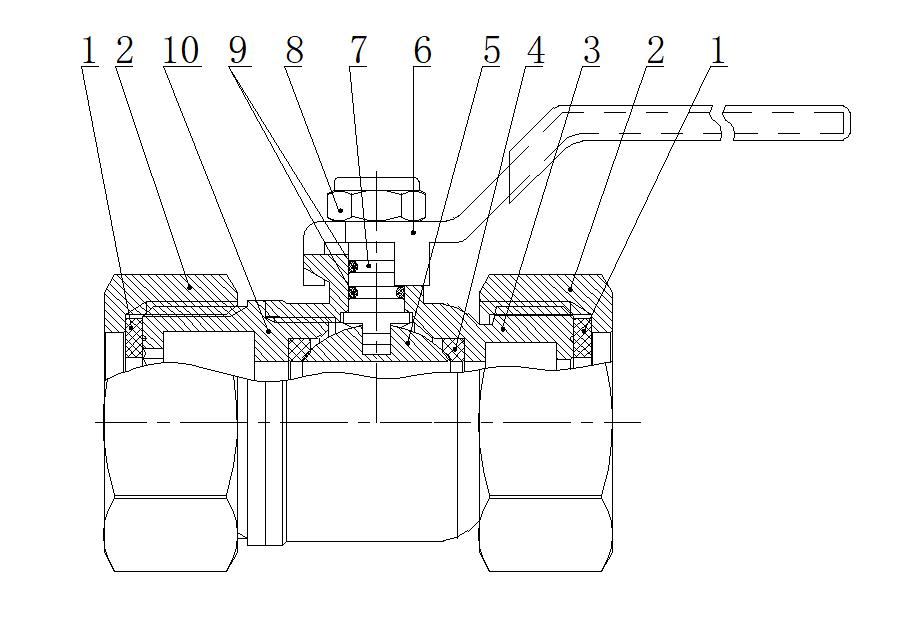

Q-1


Model Size Port
Q20 20 0.512"
Q25 25 0.689"
Q32 32 0.906"


Material List


NO. Name Material QTY
1 Gasket EPDM 2
2 Cap Nut Brass 2
3 Body Brass
 1
4 Seat
 PTFE 2
5 Ball Brass
 1
6 Handle Plated Steel 1
7 Stem Brass
 1
8 Handle Nut
 Plated Steel
 1
9 O-ring NBR 2
10 Cap Brass 1
