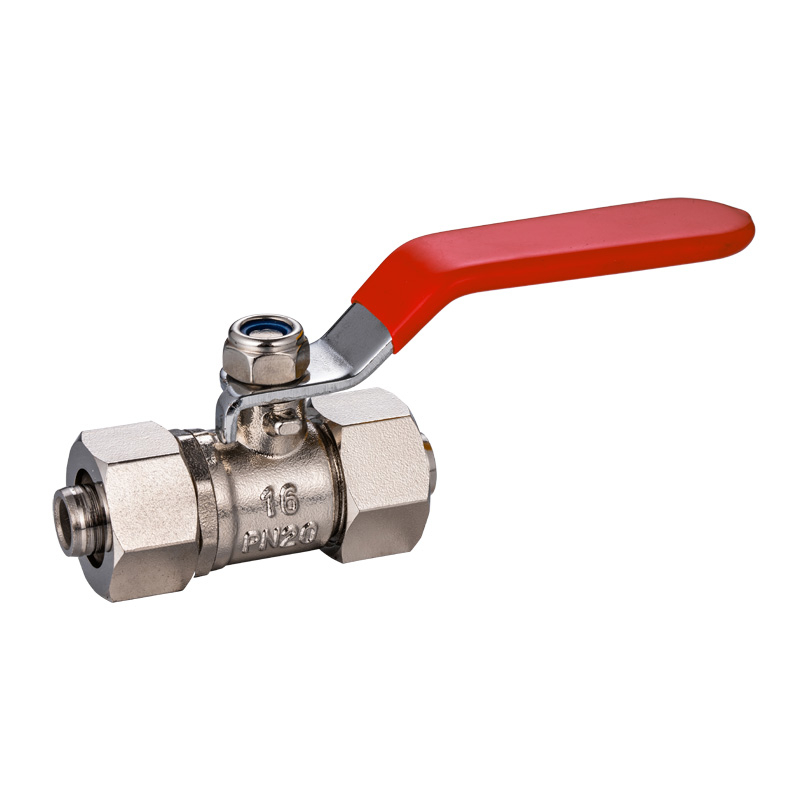

LS- SERIES


Specification
  • Forged Brass Body
  • Blow Out Proof Stem Design
  • Double O-RING
  • Handle With Vinyl Grip

Performance Rating
  • Max Working Pressure 1.6MPa
  • Temperature Range: 0℃ to 120℃

Availability:
Inquire

LS-1


Model Size Port
LS1216 1216 0.394"
LS1418 1418 0.472"
LS1620 1620 0.472"
LS2025 2025 0.591"
LS2632 2632 0.748"

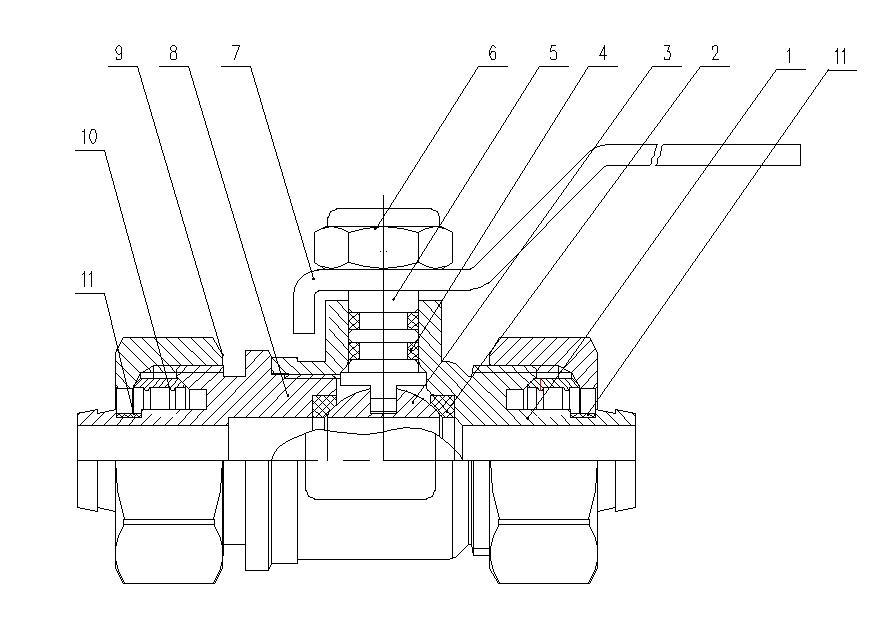

Material List


NO. Name Material QTY
1 Body Brass 1
2 Seat PTFE 2
3 Ball Brass
 1
4 O-ring NBR 2
5 Stem Brass
 1
6 Handle Nut Plated Steel 1
7 Handle Plated Steel 1
8 Cap Brass 1
9 Cap Nut Brass 2
10 Copper Clip Brass 2
11 Sealing Ring Silicone 2
