| Model | Size | Port |
| 2TXG050 | 1/2" | 0.5" |
| 2TXG075 | 3/4" | 0.591" |
| 2TXG100 | 1" | 0.787" |
| 2TXG125 | 1-1/4" | 0.984" |
| 2TXG150 | 1-1/2" | 1.260" |
| 2TXG200 | 2" | 1.457" |
| 2TXG250 | 2-1/2" | 1.941" |
| 2TXG300 | 3" | 2.520" |
| 2TXG400 | 4" | 2.894 |

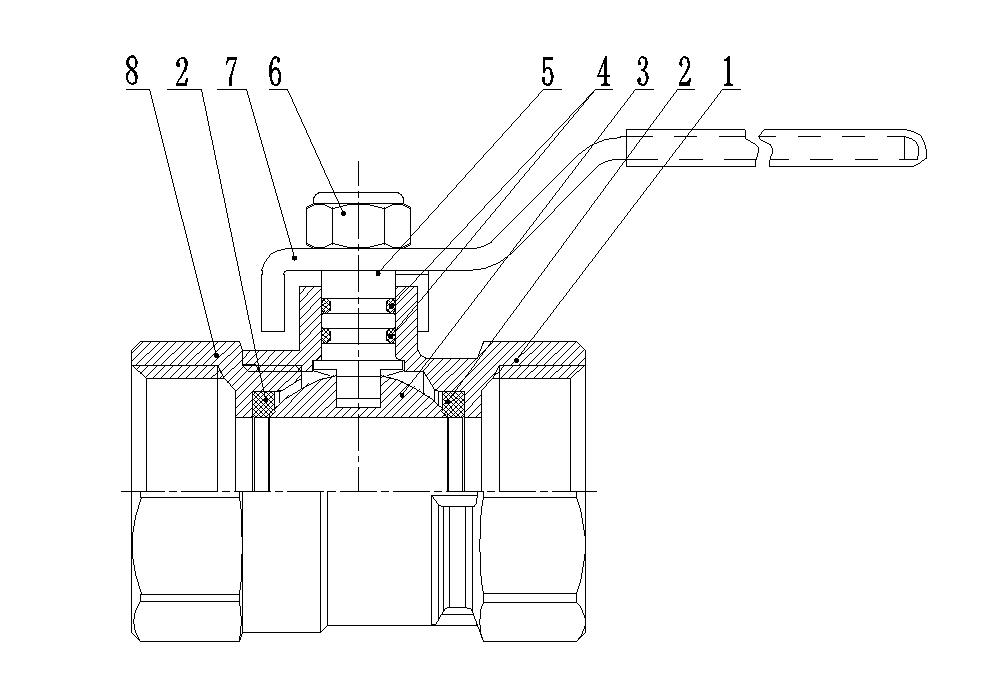

Material List
| NO. | Name | Material | QTY |
| 1 | Body | Brass | 1 |
| 2 | Seat | PTFE | 2 |
| 3 | Ball | Brass/Stainless Steel | 1 |
| 4 | O-Ring | NBR | 2 |
| 5 | Stem | Brass/Stainless Steel | 1 |
| 6 | Handle Nut | Plated Steel | 1 |
| 7 | Handle | Plated Steel | 1 |
| 8 | Cap | Brass | 1 |
| Model | Size | Port |
| 2TXG050 | 1/2" | 0.5" |
| 2TXG075 | 3/4" | 0.591" |
| 2TXG100 | 1" | 0.787" |
| 2TXG125 | 1-1/4" | 0.984" |
| 2TXG150 | 1-1/2" | 1.260" |
| 2TXG200 | 2" | 1.457" |
| 2TXG250 | 2-1/2" | 1.941" |
| 2TXG300 | 3" | 2.520" |
| 2TXG400 | 4" | 2.894 |
Material List
| NO. | Name | Material | QTY |
| 1 | Body | Brass | 1 |
| 2 | Seat | PTFE | 2 |
| 3 | Ball | Brass/Stainless Steel | 1 |
| 4 | O-Ring | NBR | 2 |
| 5 | Stem | Brass/Stainless Steel | 1 |
| 6 | Handle Nut | Plated Steel | 1 |
| 7 | Handle | Plated Steel | 1 |
| 8 | Cap | Brass | 1 |
