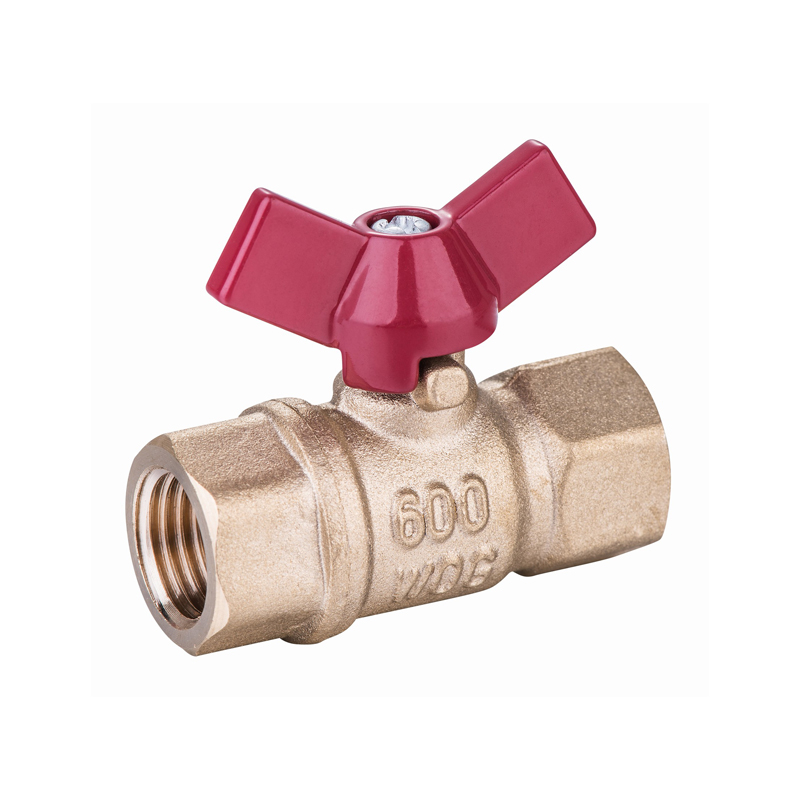

LF-MI SERIES

MINI Ball Valve-Female NPT x Female NPT

Specification
  • Forged Brass Body
  • Thread Conform to ANSI B1.20.1
  • Blow Out Proof Stem Design
  • Double O-RING

Performance Rating
  • 600 psi (WOG) 150 psi (WSP) Service
  • Temperature Range:  -20° F to 300° F

Certification
CUPC、NSF/ANSI 61 and NSF/ANSI 372 Approved
Availability:
Inquire

LF-MI-1


Model Size Port
LF-MI018 1/8" 0.299"
LF-MI025 1/4" 0.299"

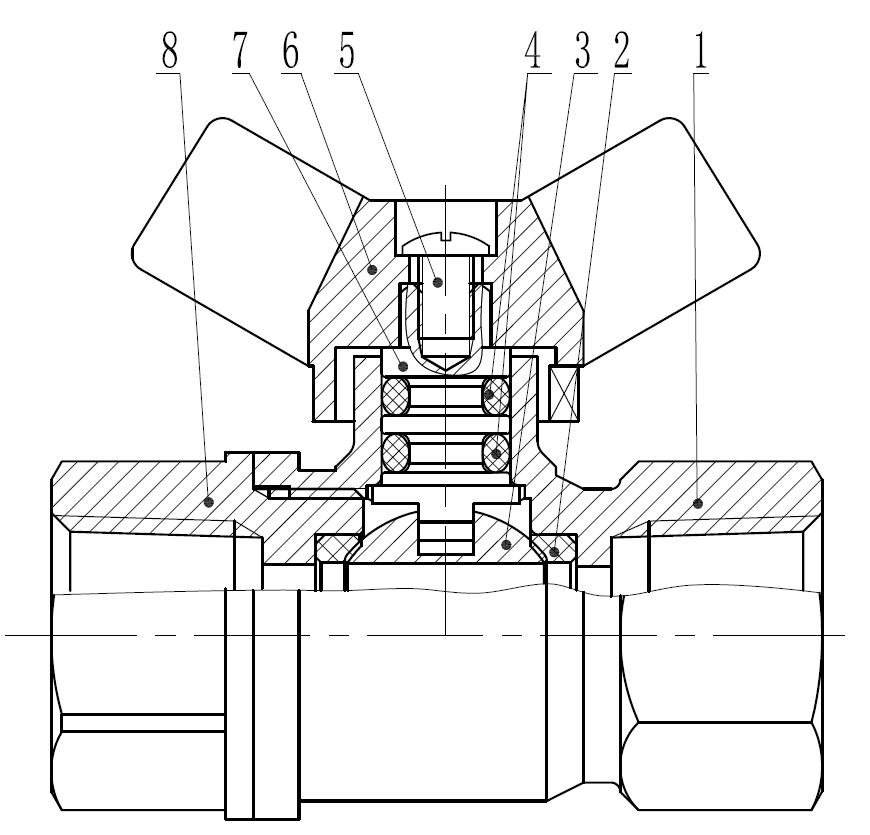

Material List


NO. Name Material QTY
1 Body Lead Free Brass
 1
2 Seat
 PTFE 2
3 Ball Lead Free Brass/Chrome Plated
 1
4 O-Ring NBR 2
5 Screw Plated Steel
 1
6 Handle AL-Alloy 1
7 Stem Brass
 1
8 Cap Lead Free Brass 1


LF-3C-2



Previous:
Next:
LF-MI SERIES

Related Products

LF-3C SERIES
LF-3C SERIES

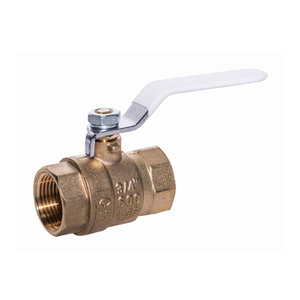

LF-3N SERIES
