| Model | Size | Port |
| FIBVA01 | 1/2"FIP*5/8"UNF(FL3/8") | 0.394" |
| FIBVA02 | 1/2"FIP*3/4"UNF(FL1/2") | 0.394" |
| FIBVA03 | 3/4"FIP*7/8"UNF | 0.591" |
| FIBVA04 | 3/4"FIP*15/16"UNF(FL5/8") | 0.591" |

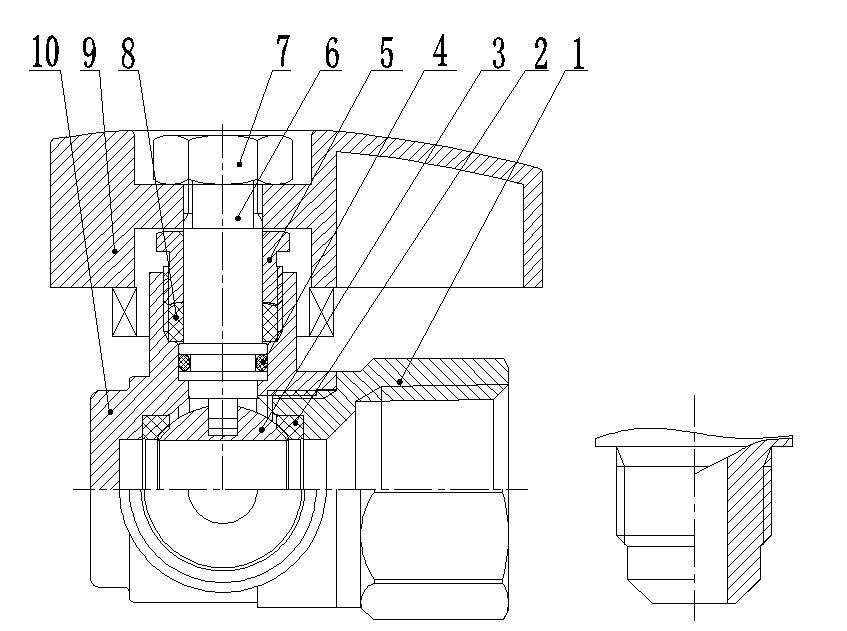

Material List
| NO. | Name | Material | QTY |
| 1 | Cap | Brass | 1 |
| 2 | Seat | PTFE | 2 |
| 3 | Ball | Brass/Chrome Plated | 1 |
| 4 | O-Ring | NBR | 1 |
| 5 | Packing Nut | Brass | 1 |
| 6 | Stem | Brass | 1 |
| 7 | Handle Nut | Plated Steel | 1 |
| 8 | Packing | PTFE | 1 |
| 9 | Handle | AL-Alloy | 1 |
| 10 | Body | Brass | 1 |
| Model | Size | Port |
| FIBVA01 | 1/2"FIP*5/8"UNF(FL3/8") | 0.394" |
| FIBVA02 | 1/2"FIP*3/4"UNF(FL1/2") | 0.394" |
| FIBVA03 | 3/4"FIP*7/8"UNF | 0.591" |
| FIBVA04 | 3/4"FIP*15/16"UNF(FL5/8") | 0.591" |
Material List
| NO. | Name | Material | QTY |
| 1 | Cap | Brass | 1 |
| 2 | Seat | PTFE | 2 |
| 3 | Ball | Brass/Chrome Plated | 1 |
| 4 | O-Ring | NBR | 1 |
| 5 | Packing Nut | Brass | 1 |
| 6 | Stem | Brass | 1 |
| 7 | Handle Nut | Plated Steel | 1 |
| 8 | Packing | PTFE | 1 |
| 9 | Handle | AL-Alloy | 1 |
| 10 | Body | Brass | 1 |
