LF-5422 SERIES

Brass Hose Bibbs Male NPT * NH Male

Specification
  • Forged Brass Body
  • NPT Thread ends Conform to ANSI B1.20.1
  • Hose Threads Conform to ANSI B1.20.7

Performance Rating
  • Max Working Pressure 125 PSI

Certification
CUPC、NSF/ANSI 61、 NSF/ANSI 372 and CSA B125.1 Approved
Availability:
Inquire

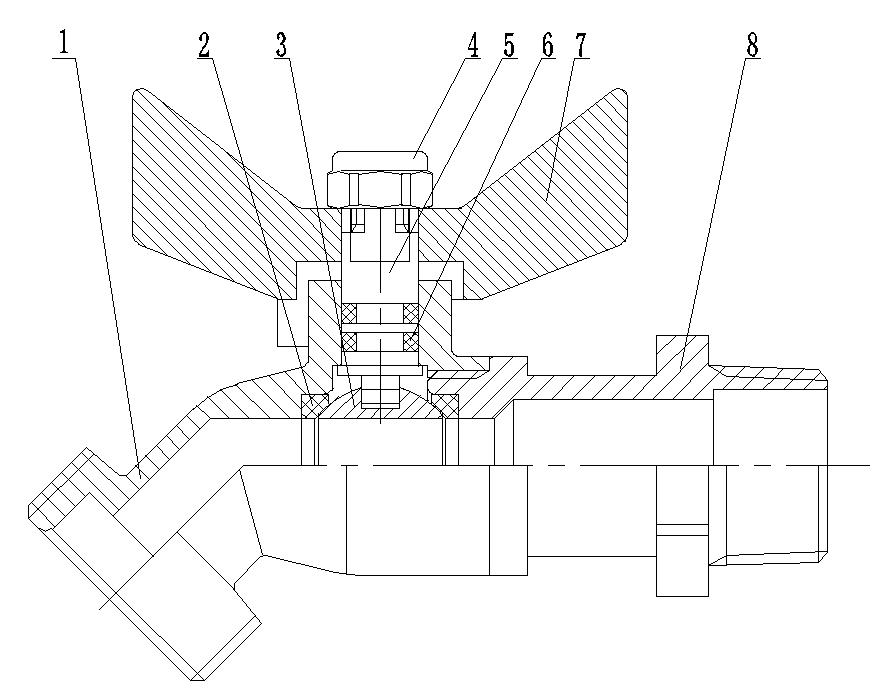

LF-5422-1


Model Size Port
LF-54220 1/2" 0.394"
LF-54221 3/4" 0.394"


Material List


NO. Name Material QTY
1 Body Lead Free Brass 1
2 Seat
 PTFE 2
3 Ball Lead Free Brass/Chrome Plated 1
4 Handle Nut Steel 1
5 Stem Brass 1
6 O-Ring EPDM 2
7 Handle AL-ALLOY 1
8 Cap Lead Free Brass 1


cupc
