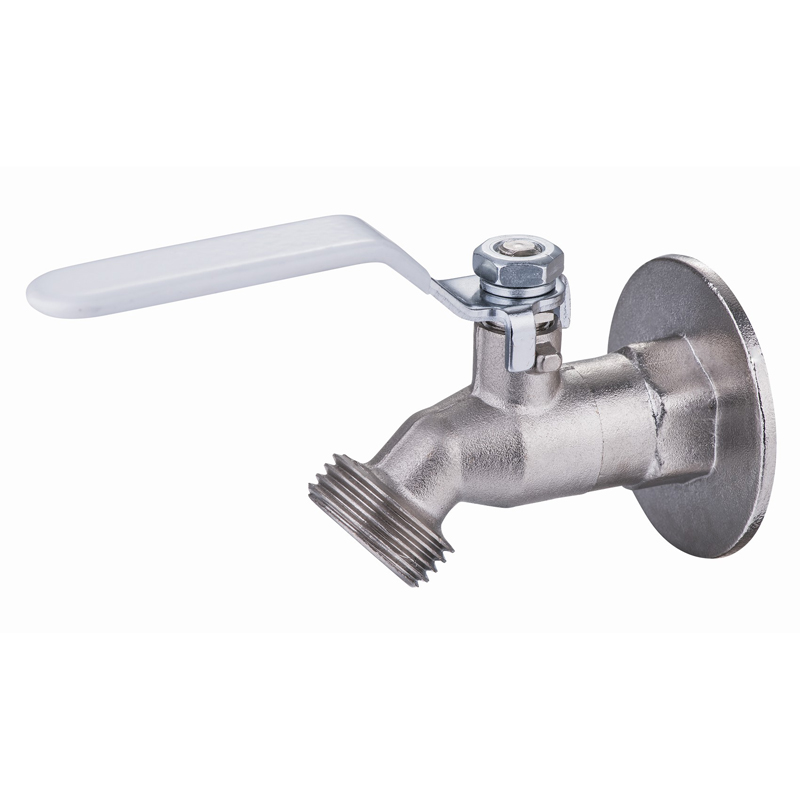

LF-54 SERIES

Brass Hose Bibbs Male NPT * NH Male

Specification
  • Forged Brass Body
  • NPT thread ends Conform to ANSI B1.20.1
  • Solder-Joint Conform to ASME B16.22
  • PEX end Conform to ASTM F1807
  • PROPEX end Conform to ASTM F1960
  • Hose Threads Conform to ANSI B1.20.7
  • Press end Conform to IAPMO PS117

Performance Rating
  • Max Working Pressure 125 PSI

Certification
CUPC、NSF/ANSI 61、 NSF/ANSI 372 and CSA B125.1 Approved
Availability:
Inquire

LF-542 LF-543

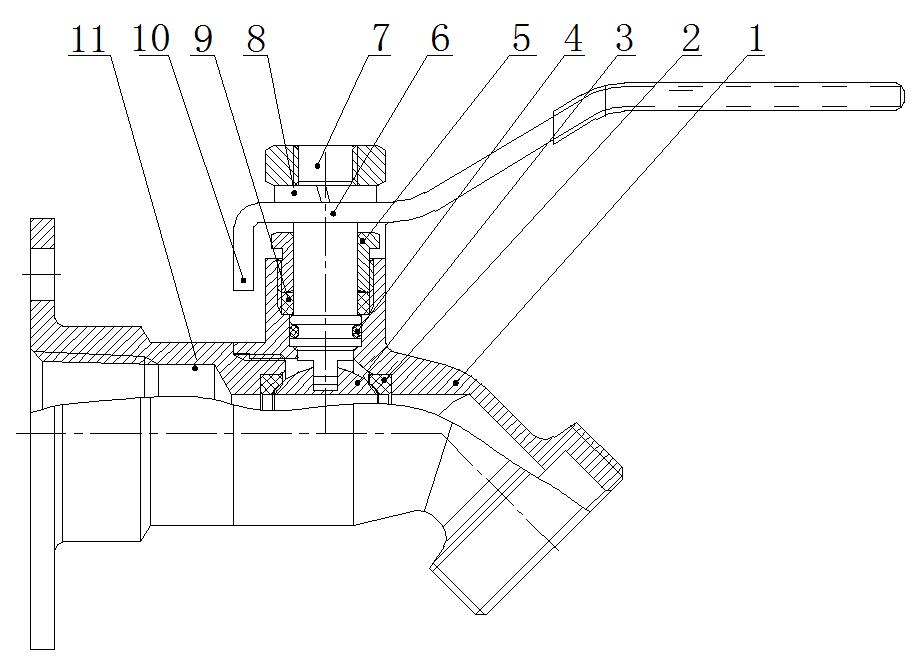

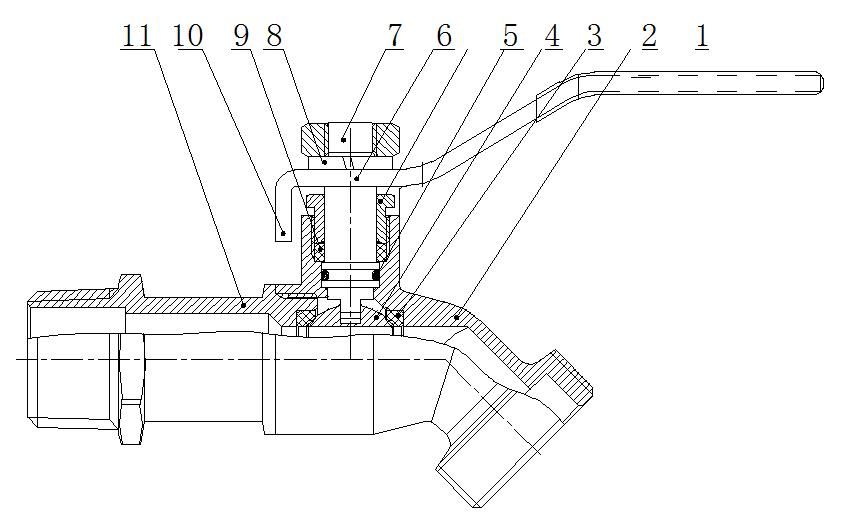

LF-54 (3) LF-54 (4)


Model Size Port
LF-54260 1/2"NPT*3/4"NH 0.394"
LF-54261 3/4"NPT*3/4"NH 0.394"
LF-54301 1/2"NPT*3/4"NH 0.394"
LF-54302 3/4"NPT*3/4"NH 0.394"
LF-54321 1/2"SOLDER*3/4"NH 0.394"
LF-54322 3/4"SOLDER*3/4"NH 0.394"
LF-54340 1/2"PEX*3/4"NH 0.394"
LF-54341 3/4"PEX*3/4"NH 0.394"
LF-54350 1/2"PROPEX*3/4"NH 0.394"
LF-54351 3/4"PROPEX*3/4"NH 0.394"


Material List


NO. Name Material QTY
1 Body Lead Free Brass 1
2 Seat
 PTFE 2
3 Ball Lead Free Brass/Chrome Plated 1
4 O-Ring EPDM 1
5 Packing PTFE 1
6 Stem Brass
 1
7 Handle Nut Plated Steel 2
8 Handle Plated Steel 1
9 Packing Nut Brass 1
10 Cap Lead Free Brass 1


cupc


Previous:
Next:
LF-54 SERIES

Related Products

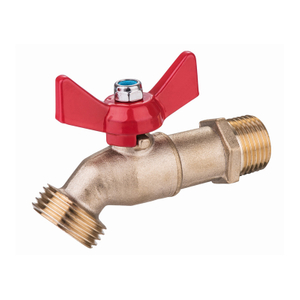

LF-5422 SERIES
LF-5422 SERIES

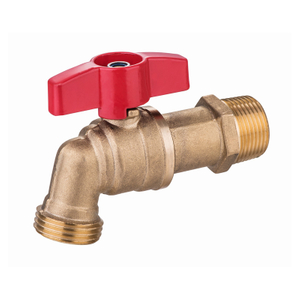

LF-5423 SERIES
