2TXMMG SERIES

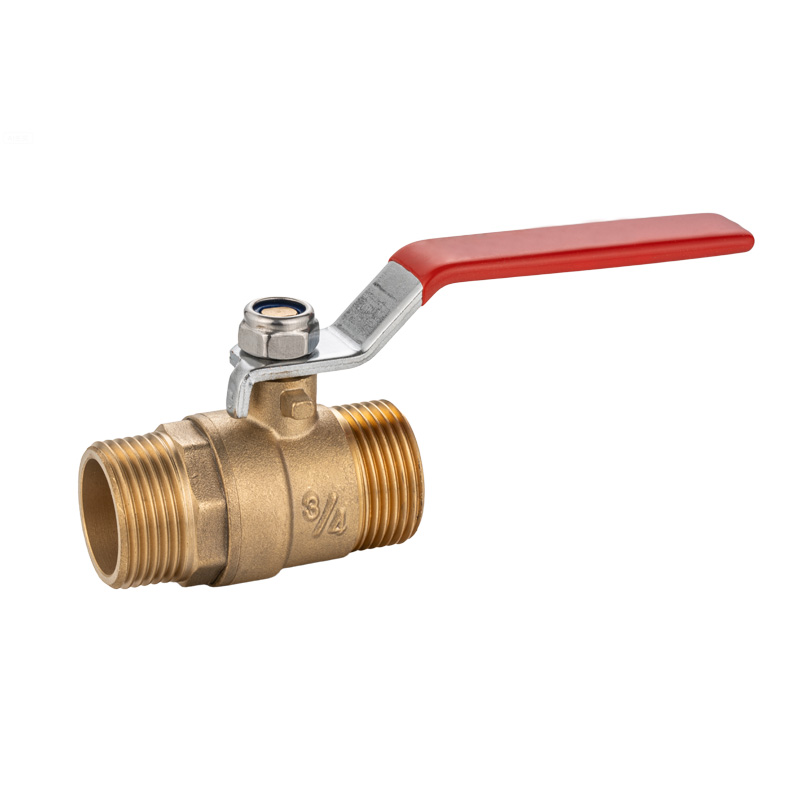

Regular Port Brass Ball Valves Male G * Male G

Specification
  • Regular Port
  • Forged Brass Body
  • Blow Out Proof Stem Design
  • Double O-RING
  • Handle With Vinyl Grip
  • The M/M Thread conforms to ISO 228-1

Performance Rating
  • Max Working Pressure PN 20
  • Temperature Range: -20℃ to 120℃

Certification
ISO9001 & SASO Approved
Availability:
Inquire

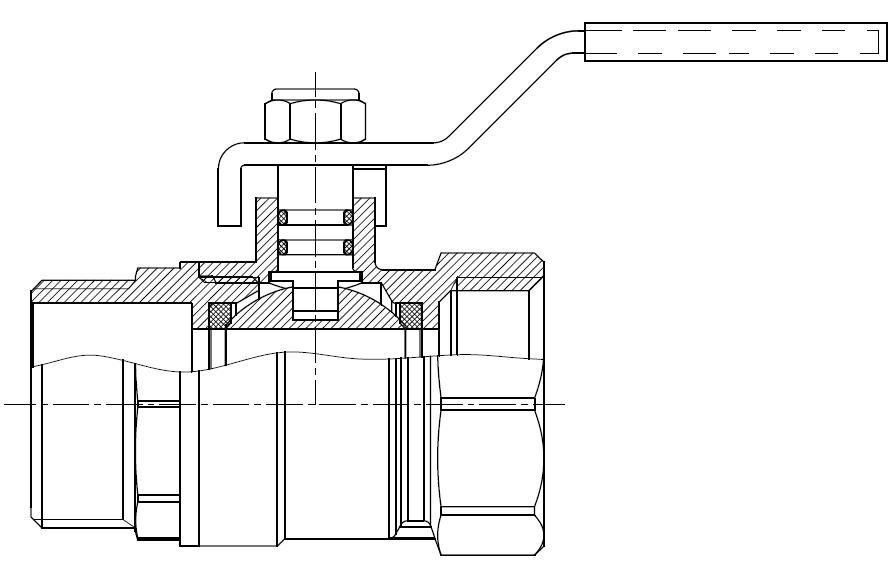

2TXMMG-1


Model & Structure Dimension


Model Size Port(mm)
2TXMMG050 1/2" 10
2TXMMG075 3/4" 15
2TXMMG100 1" 19


2TXMG SERIES-3
