YSG

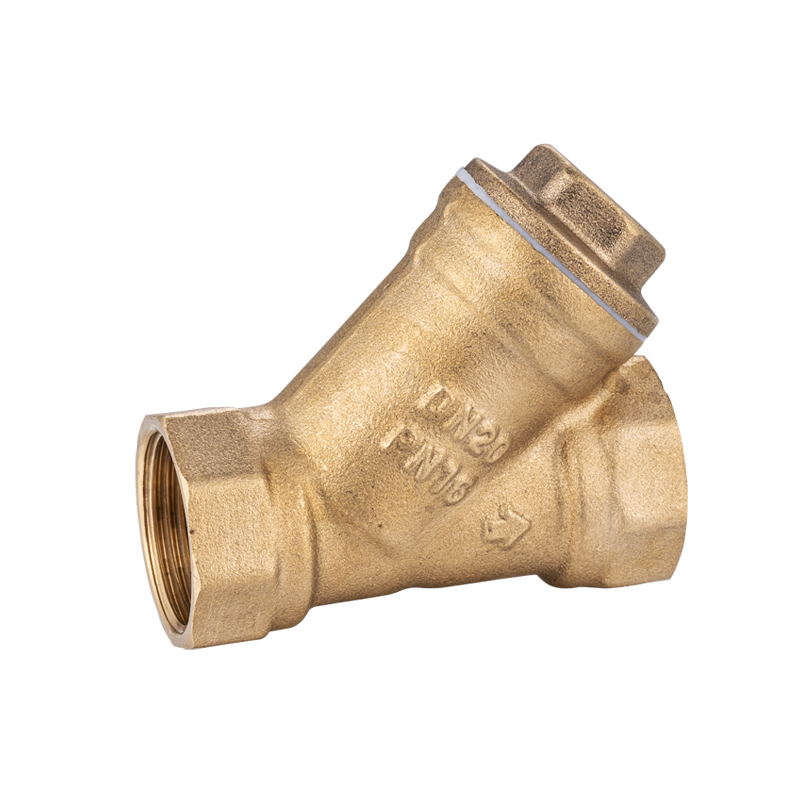

Heavy Brass Y Strainer

Specification
  • Forged Brass Body
  • S.S.Filter
  • PTFE Gasket Seal
  • Maximum Working Temperature: 100℃
  • Thread: ISO228
Availability:
Inquire

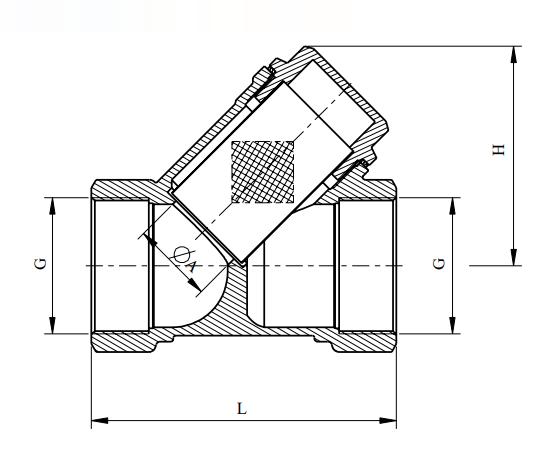

YSG-1


Bar (max) 16 16 16 16 16 16
G 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
L(mm) 58 68.5 74.5 92 102 125
H(mm) 40 46 53.5 63 71.5 86.5
A(mm) 15.5 18 20 26 34 42
