GVG

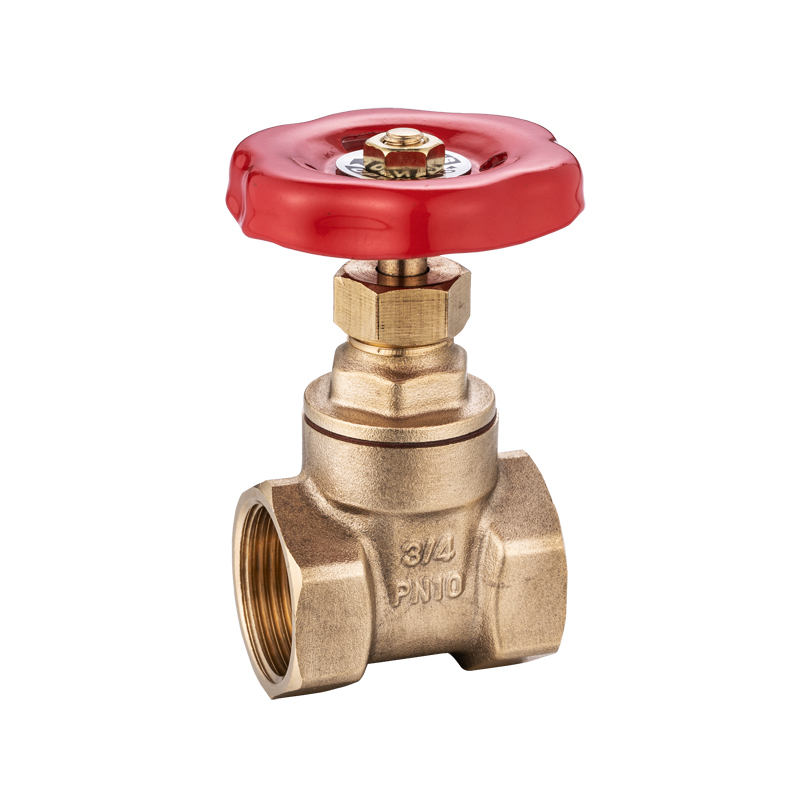

Gate Vavle PN10

Specification
  • Forged Brass Body
  • Non-Rising Stem
  • Brass Solid Wedge
  • Steel Handle
  • Maximum Working Temperature: 80℃
  • Thread: ISO228
Availability:
Inquire

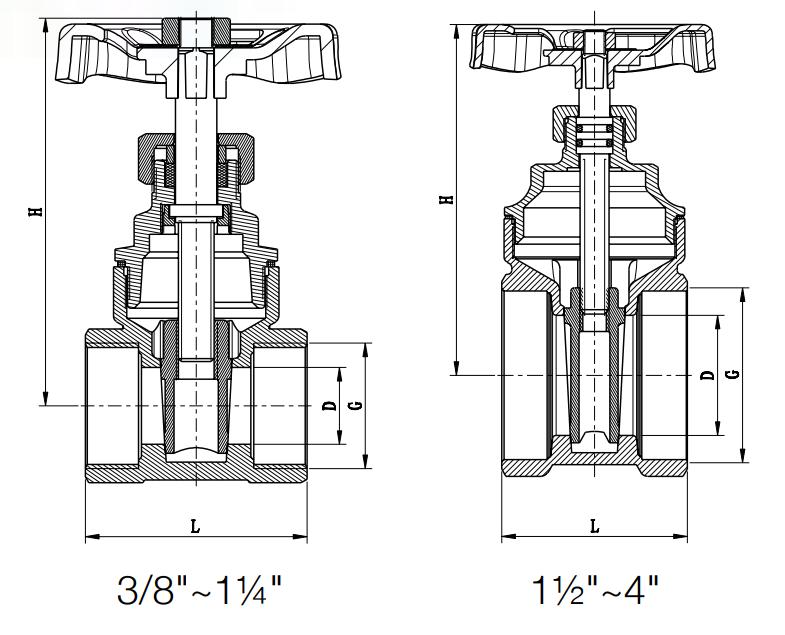

GVG-1


Bar(max) 10 10 10 10 10 10 10 16 16 16
G 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
D(mm) 12.5 13 15 19 26 33 42 60 68 93
L(mm) 37.5 37.5 41 44.5 50.5 51 61 66 84 80
H(mm) 65.5 65.5 67 76.5 90.5 96 119 159 185 227
