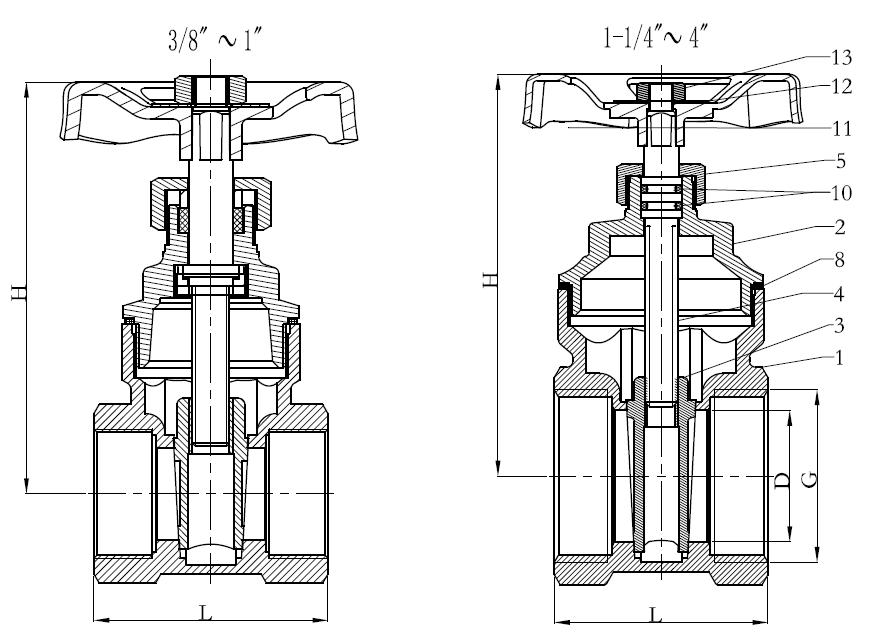

Model & Structure Dimension
| G | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| D(mm) | 12.5 | 15 | 19 | 24 | 32 | 39 | 48 | 60 | 68 | 93 |
| L(mm) | 37 | 38 | 43 | 47.5 | 52 | 57 | 65 | 66 | 84 | 80 |
| H(mm) | 65.5 | 37 | 77 | 88.5 | 98 | 115 | 145 | 159 | 185 | 227 |
Model & Structure Dimension
| G | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| D(mm) | 12.5 | 15 | 19 | 24 | 32 | 39 | 48 | 60 | 68 | 93 |
| L(mm) | 37 | 38 | 43 | 47.5 | 52 | 57 | 65 | 66 | 84 | 80 |
| H(mm) | 65.5 | 37 | 77 | 88.5 | 98 | 115 | 145 | 159 | 185 | 227 |
