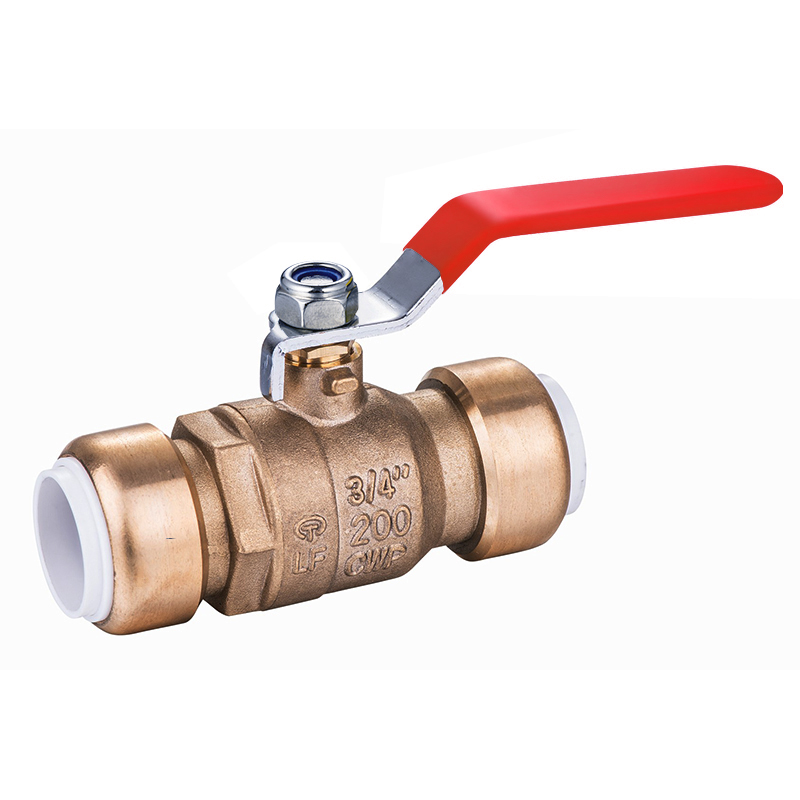

LF-PF SERIES

Full Port Brass Ball Valves Push-Fiting End

Specification
  • Forged Brass Body
  • Pushfit ends Conform to ASSE1061
  • Designed specifically for use in COPPER(PEX/CPVC)piping system
  • Blow Out Proof Stem Design
  • Packing Nut & O-RING
  • Handle With Vinyl Grip

Performance Rating
  • Valve Pressure Pressure 250 psi
  • Max Working Temperature 200° F Water Service

Availability:
Inquire

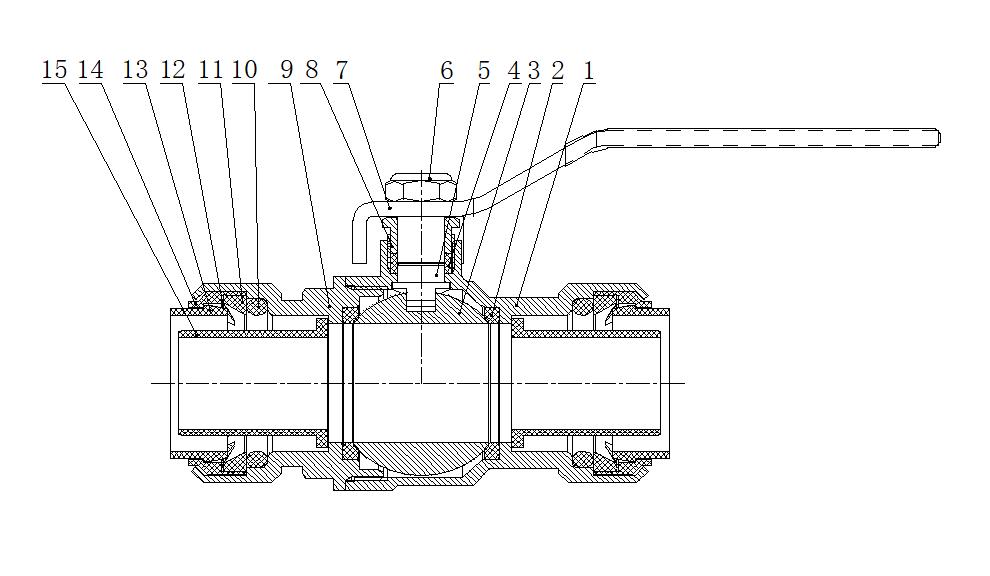

LF-PF-1

Model Size Port
LF-4PF050 1/2" 0.524"
LF-4PF075 3/4" 0.748"
LF-4PF100 1" 0.984"


Material List


NO. Name Material QTY
1 Body Lead Free Brass
 1
2 Seat
 PTFE 2
3 Ball Stainless Steel
 1
4 Packing
 PTFE 1
5 O-Ring EPDM
 1
6 Stem Brass
 1
7 Handle Nut Plated Steel
 1
8 Handle
 Plated Steel
 1
9 Packing Nut Brass
 1
10 O-Ring
 EPDM 1
11 Seat Ring POM 2
12 Gripper Ring Stainless Steel 2
13 Push Ring POM 2
14 Lock  Ring POM 2
15 Liner PSF 2


Previous:
Next:
LF-PF SERIES

Related Products

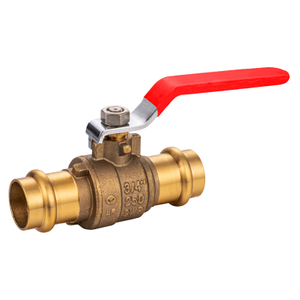

LF-PS SERIES
