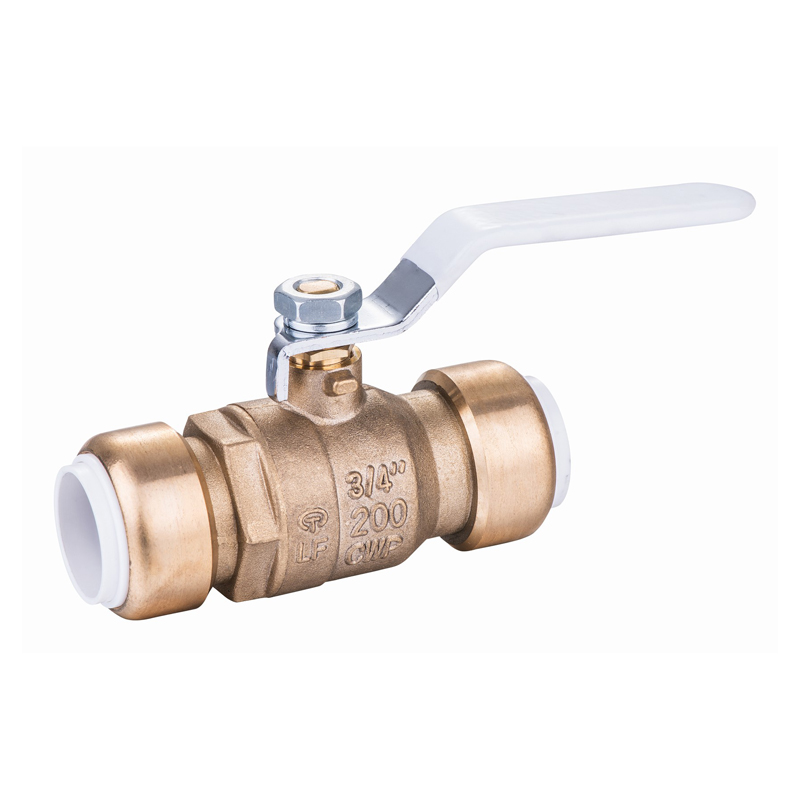

LF-4PF SERIES

Full Port Brass Ball Valves Push-Fiting End

Specification
  • Forged Brass Body
  • Pushfit ends Conform to ASSE1061
  • Designed Specifically for Use In COPPER(PEX/CPVC)piping System
  • Blow Out Proof Stem Design
  • Packing Nut & O-RING
  • Handle With Vinyl Grip

Performance Rating
  • Max Working Pressure 125 psi
  • Max Working Temperature 180° F Water Service

Certification
CUPC、NSF/ANSI 61 and NSF/ANSI 372 Approved
Availability:
Inquire

LF-4PF-1



Model Size Port
LF-4PF050 1/2" 0.591"
LF-4PF075 3/4" 0.748"
LF-4PF100 1" 0.984"


Material List


NO. Name Material QTY
1 Body Lead Free Brass
 1
2 Seat
 PTFE 2
3 Ball Stainless Steel
 1
4 Packing
 PTFE 1
5 Stem Brass
 1
6 Handle Nut Plated Steel
 1
7 Lock Washer Plated Steel
 1
8 Handle Plated Steel
 1
9 Packing Nut Brass
 1
10 Cap Lead Free Brass
 1
11 O-Ring EPDM 2
12 Seat Ring POM 2
13 Gripper Ring Stainless Steel
 2
14 Push Ring POM 2
15 Lock  Ring POM 2
16 Liner PSF 2
