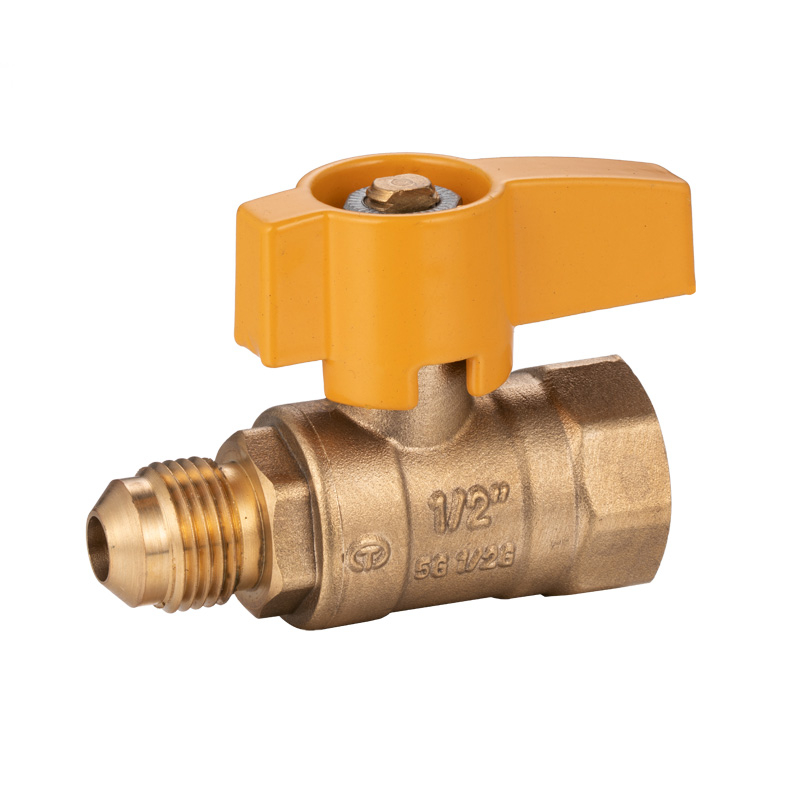

FIBV SERIES

Brass Gas Ball Valve-Flare x Female G

Specification
  • Forged Brass Body
  • Thread: ISO228
  • Blow Out Proof Stem Design
  • Packing Nut & O-RING

Performance Rating
  • Max Working Pressure 1.6MPa
  • Temperature Range : -20℃ to 65℃
Availability:
Inquire

FIBV-1


FIBV00 3/8"FIP*9/16"UNEF 0.394
FIBV01 3/8"FIP*5/8"UNF(FL3/8") 0.394
FIBV02 1/2"FIP*5/8"UNF(FL3/8") 0.394
FIBV03 1/2"FIP*3/4"UNF(FL1/2") 0.394
FIBV04 1/2"FIP*7/8"UNF 0.394
FIBV05 1/2"FIP*15/16"UNF(FL5/8") 0.591
FIBV06 3/4"FIP*3/4"UNF(FL1/2") 0.591
FIBV07 3/4"FIP*7/8"UNF 0.591
FIBV08 3/4"FIP*15/16"UNF(FL5/8") 0.591

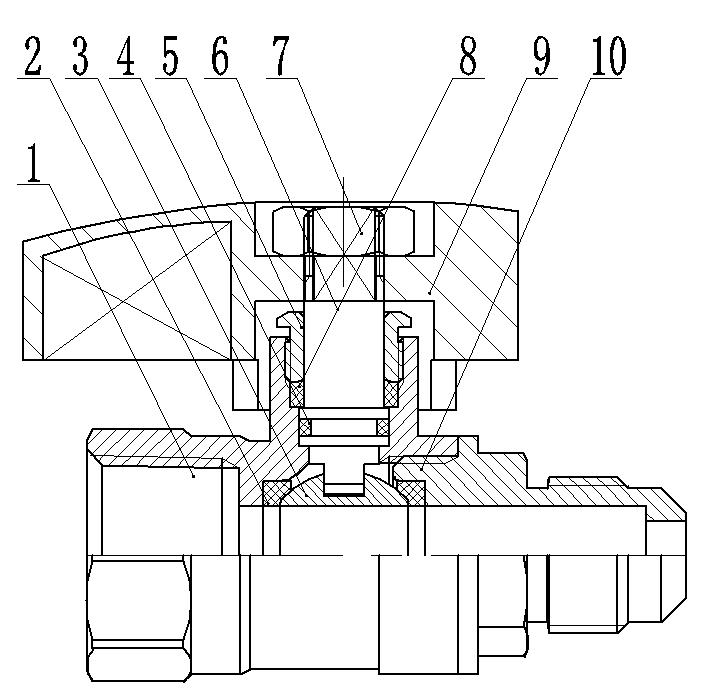

Material List


NO. Name Material QTY
1 Body Brass
 1
2 Seat
 PTFE 2
3 Ball Brass
 1
4 O-Ring NBR 1
5 Packing Nut Brass
 1
6 Stem Brass
 1
7 Handle Nut Plated Steel
 1
8 Packing PTFE
 1
9 Handle AL-Alloy 1
10 Cap Brass
 1


Previous:
Next:
FIBV SERIES

Related Products

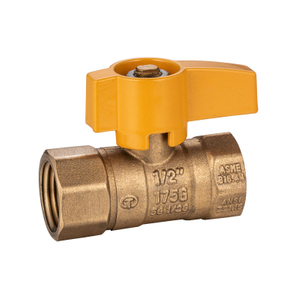

GBV SERIES
