CVG

Swing Check Vavle

Specification
  • Forged Brass Body
  • Brass Metal Seal
  • Maximum Working Temperature: 100℃
  • Thread: ISO228
Availability:
Inquire

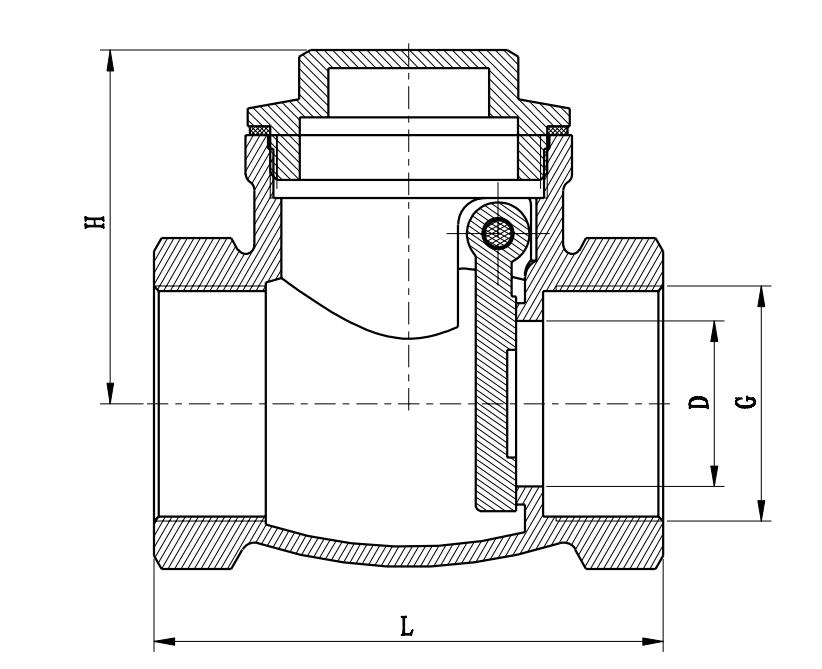

CVG-1


Bar(max) 16 16 16 16 16 16 16 16 16
G 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4"
D(mm) 13 18.5 23 28 36 45 56 76 96
L(mm) 54 57 68 76 82 97 118 140 160
H(mm) 35 39.5 45 53.5 59.5 66 81.5 90 109
